1987 – 1991 Arctic Cat Snowmobile 529/530cc Piston

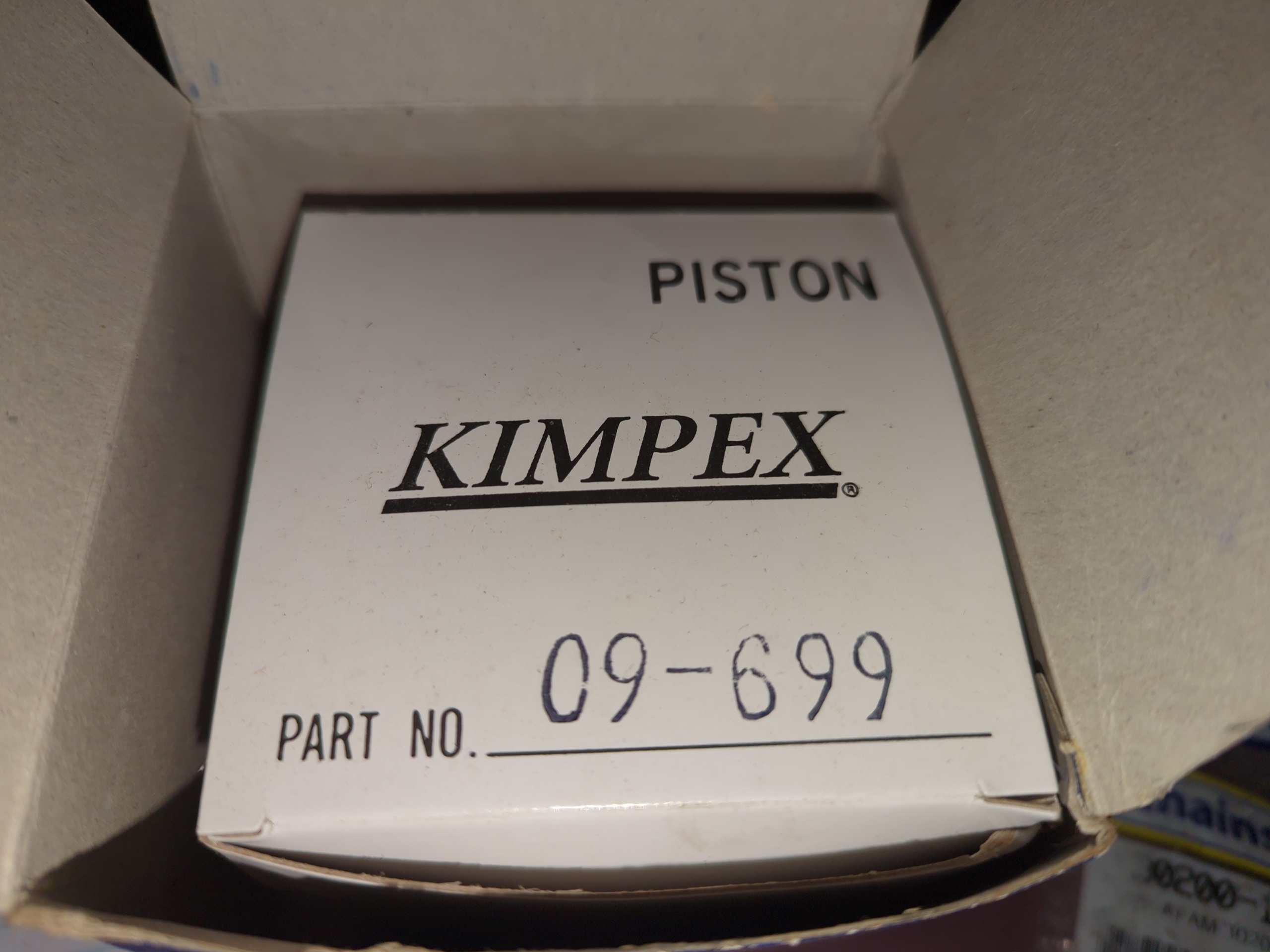

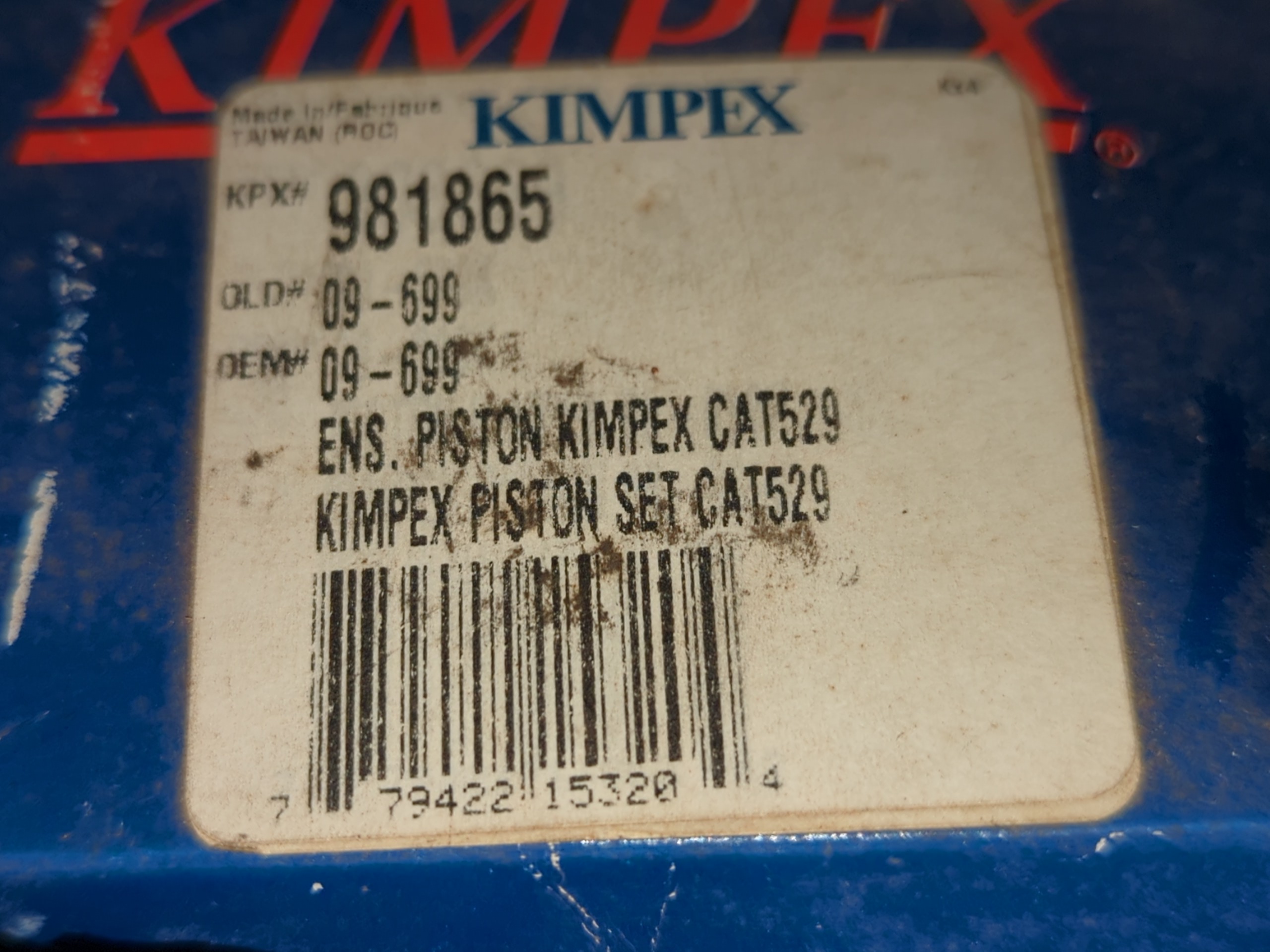

Arctic Cat Cheetah 530 L/C Piston kit 09-699 3003-303 STD + Ring

For Arctic Cat Snowmobile 530cc
El Tigre EXT Mountain Cat; Cheetah 530 L/C; El Tigre 6000
Reference OE/OEM Number
3003-303, 3003-231, 3005-686, 3003-687
Piston Size
Standard (STD)
Piston Bore Size
72 (mm)
Items Included

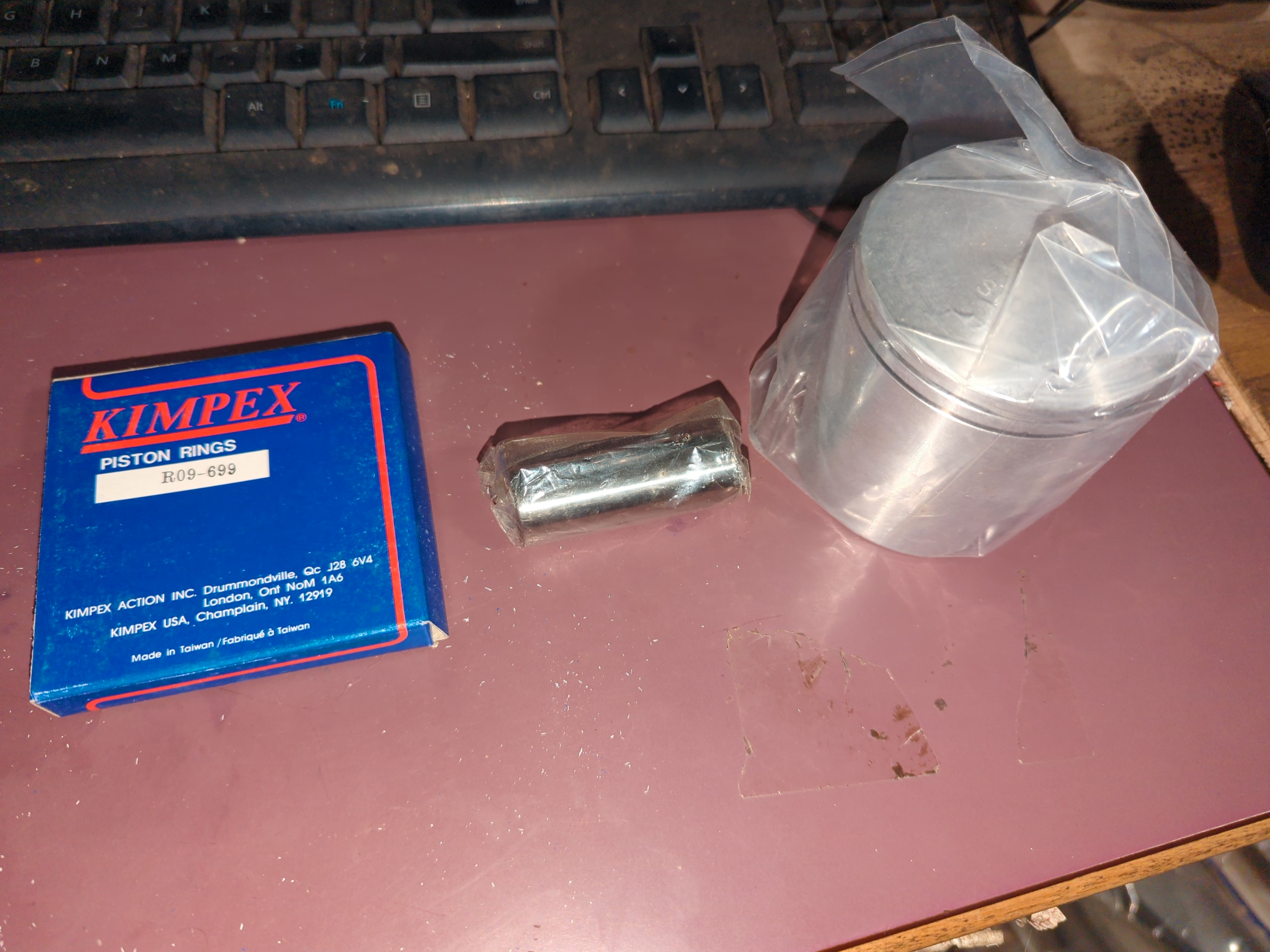

Piston rings, clips, pin

Country/Region of Manufacture
Taiwan

Part Number: 3005-686
PISTON ASSY,530L/C-’86-’91 –
Replaces 3003-303
Replaces 3003-687

1991 EL TIGRE EXT – PISTON AND CRANKSHAFT
1991 EL TIGRE EXT MOUNTAIN CAT – PISTON AND CRANKSHAFT
1990 EL TIGRE EXT – PISTON AND CRANKSHAFT
1990 EL TIGRE EXT MOUNTAIN CAT – PISTON AND CRANKSHAFT
1990 EL TIGRE EXT SPECIAL – PISTON AND CRANKSHAFT
1989 EL TIGRE 6000 (530 L/C) – PISTON AND CRANKSHAFT
1989 EL TIGRE EXT – PISTON AND CRANKSHAFT
1989 EL TIGRE EXT MOUNTAIN CAT – PISTON AND CRANKSHAFT
1988 CHEETAH (530 L/C) – PISTON AND CRANKSHAFT
1988 EL TIGRE 6000 (530 L/C) – PISTON AND CRANKSHAFT
1987 CHEETAH L/C – PISTON AND CRANKSHAFT
1987 EL TIGRE (530) – PISTON AND CRANKSHAFT

Part Number: 3003-687 – R/B 3005-686 –
Replaced by 3005-686
