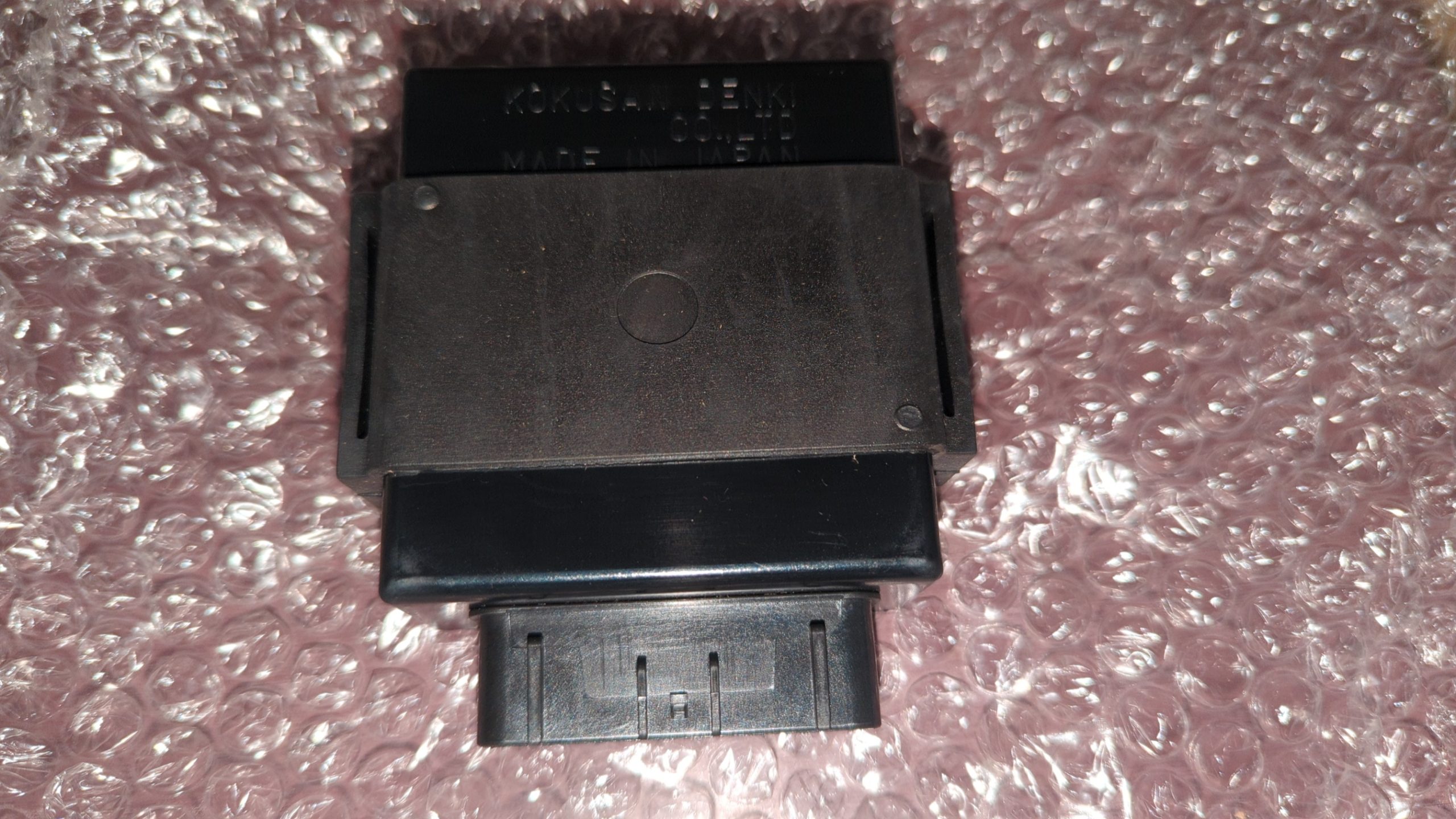

2005 – 2012 Arctic Cat 650 H1,TBX,TRV CDI Unit

CDI UNIT,RL (07 650-H1 FIS)
0824-038

CDI Unit

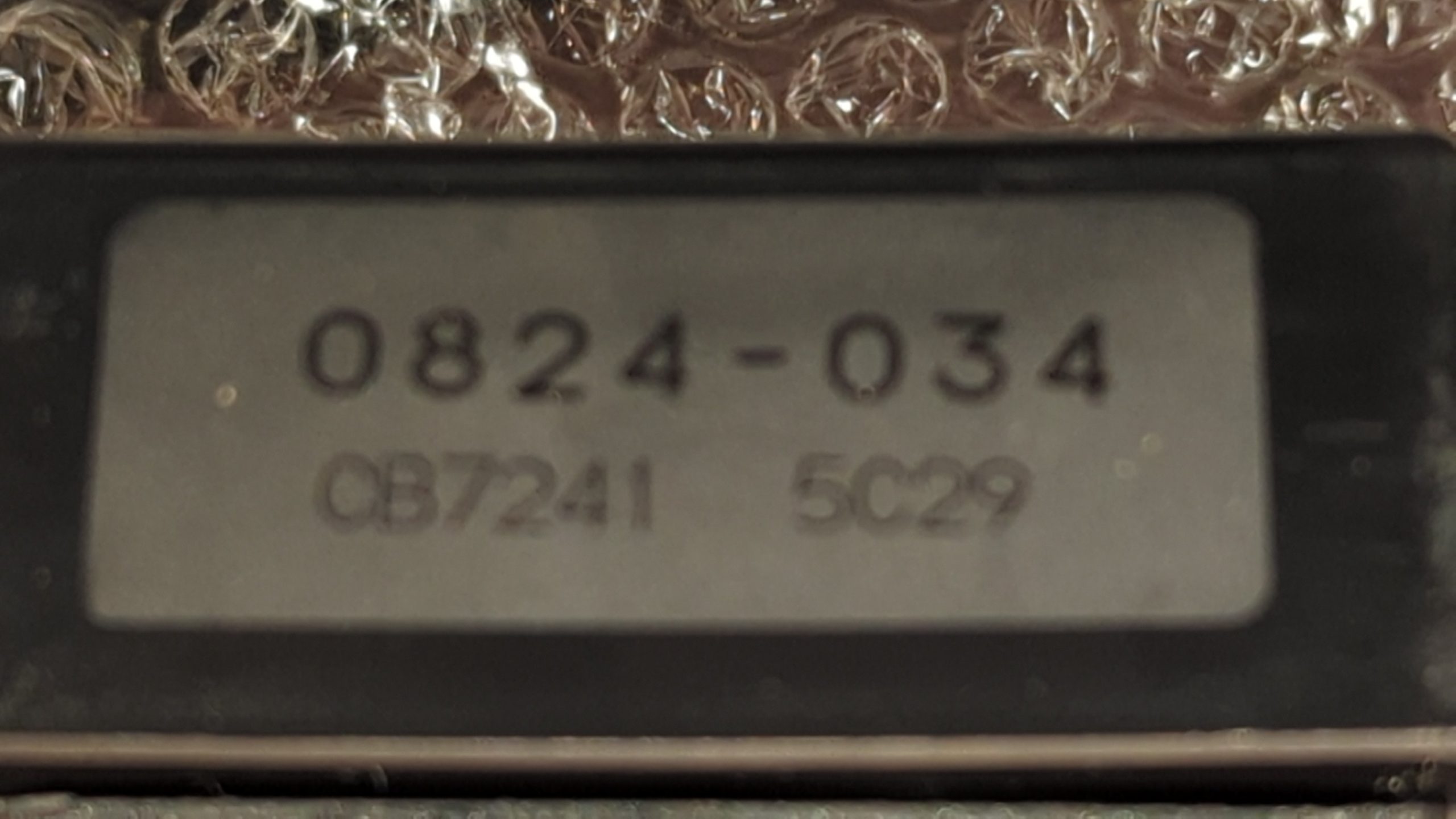

0824-034 0824-038

Assemblies where 0824-034 is used
2005 650 H1 4X4 BLACK LE (A2005IBS4BUSO) – Wiring Harness Assembly
2006 650 H1 AUTOMATIC TRANSMISSION 4X4 BLACK SE (A2006IBS4BUSO) – Wiring Harness Assembly
2006 650 H1 AUTOMATIC TRANSMISSION 4X4 BLACK SE CA (A2006IBS4BCAO) – Wiring Harness Assembly
2007 650 H1 AUTOMATIC TRANSMISSION 4X4 FIS BLACK (A2007IBS4BUSP) – Wiring Harness Assembly
2007 650 H1 AUTOMATIC TRANSMISSION 4X4 FIS CAT GREEN (A2007IBS4BUSZ) – Wiring Harness Assembly
2007 650 H1 AUTOMATIC TRANSMISSION 4X4 FIS GREEN (A2007IBS4BUSG) – Wiring Harness Assembly
2007 650 H1 AUTOMATIC TRANSMISSION 4X4 FIS GREEN LE (A2007IBS4BUSM) – Wiring Harness Assembly
2007 650 H1 AUTOMATIC TRANSMISSION 4X4 FIS GUN METAL BLUE (A2007IBS4BUSV) – Wiring Harness Assembly
2007 650 H1 AUTOMATIC TRANSMISSION 4X4 FIS M4 CAMO (A2007IBS4BUSC) – Wiring Harness Assembly
2007 650 H1 AUTOMATIC TRANSMISSION 4X4 FIS RED (A2007IBS4BUSR) – Wiring Harness Assembly
2007 650 H1 AUTOMATIC TRANSMISSION 4X4 TBX GREEN (A2007BBS4BUSG) – Wiring Harness Assembly
2007 650 H1 AUTOMATIC TRANSMISSION 4X4 TBX RED (A2007BBS4BUSR) – Wiring Harness Assembly
2007 650 H1 AUTOMATIC TRANSMISSION 4X4 TRV BLACK LE (A2007TBS4BUSQ) – Wiring Harness Assembly
2007 650 H1 AUTOMATIC TRANSMISSION 4X4 TRV CAT GREEN (A2007TBS4BUSZ) – Wiring Harness Assembly
2007 650 H1 AUTOMATIC TRANSMISSION 4X4 TRV GREEN (A2007TBS4BUSG) – Wiring Harness Assembly
2007 650 H1 AUTOMATIC TRANSMISSION 4X4 TRV RED (A2007TBS4BUSR) – Wiring Harness Assembly
2008 650 H1 AUTOMATIC TRANSMISSION 4X4 FIS BLACK (A2008IBS4BUSP) – Wiring Harness Assembly
2008 650 H1 AUTOMATIC TRANSMISSION 4X4 FIS CAT GREEN (A2008IBS4BUSZ) – Wiring Harness Assembly
2008 650 H1 AUTOMATIC TRANSMISSION 4X4 FIS RED (A2008IBS4BUSR) – Wiring Harness Assembly
2008 650 H1 AUTOMATIC TRANSMISSION 4X4 TRV BLACK (A2008TBS4BUSP) – Wiring Harness Assembly
2008 650 H1 AUTOMATIC TRANSMISSION 4X4 TRV CAT GREEN (A2008TBS4BUSZ) – Wiring Harness Assembly
2008 650 H1 AUTOMATIC TRANSMISSION 4X4 TRV RED (A2008TBS4BUSR) – Wiring Harness Assembly
2009 650 TBX GREEN (A2009BBS4BUSG) – Wiring Harness Assembly
2009 650 TRV CAT GREEN (A2009TBS4BUSZ) – Wiring Harness Assembly
2010 650 4X4 AUTOMATIC BLACK (A2010ICS4BUSP) – Wiring Harness Assembly
2010 650 4X4 AUTOMATIC MUD PRO CAT GREEN (A2010IFS4BUSZ) – Wiring Harness Assembly
2011 650 H1 GREEN (A2011ICS4BUSG) – Wiring Harness Assembly
2011 650 H1 MUD PRO CAT GREEN-BLACK (A2011IFS4BUSZ) – Wiring Harness Assembly
2012 650 RED (A2012ICS4BUSR) – Wiring Harness Assembly
