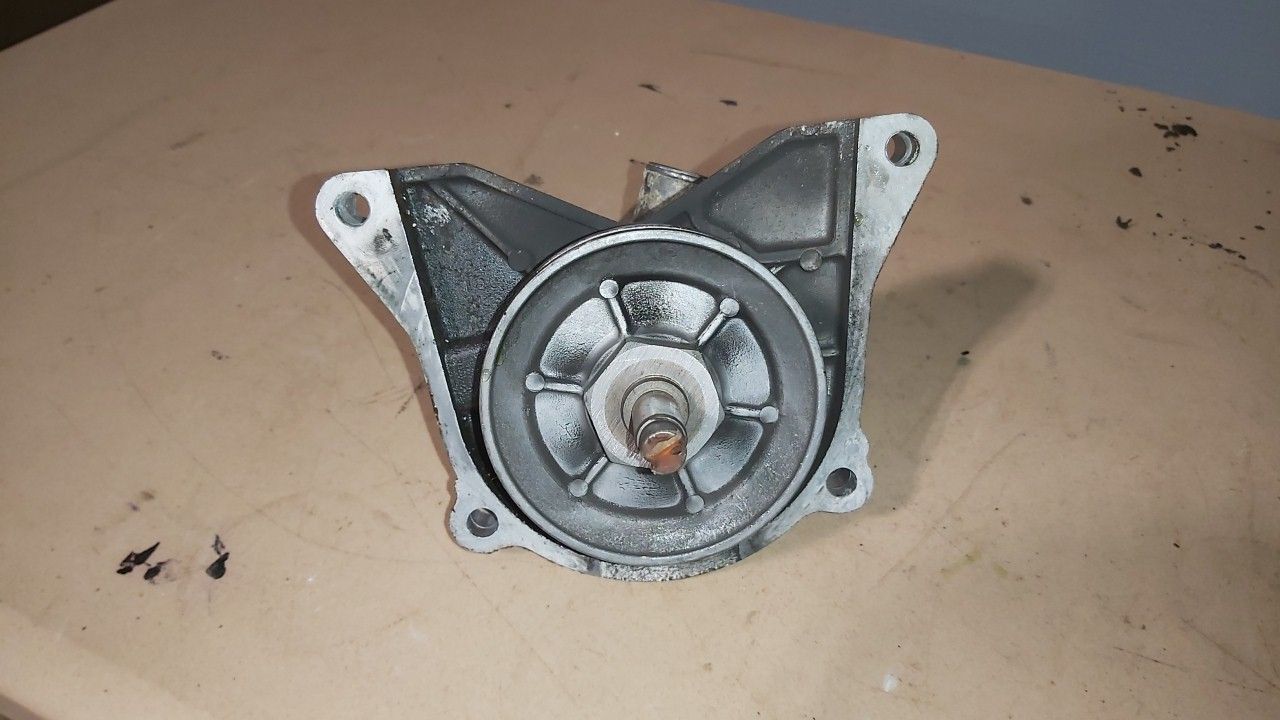

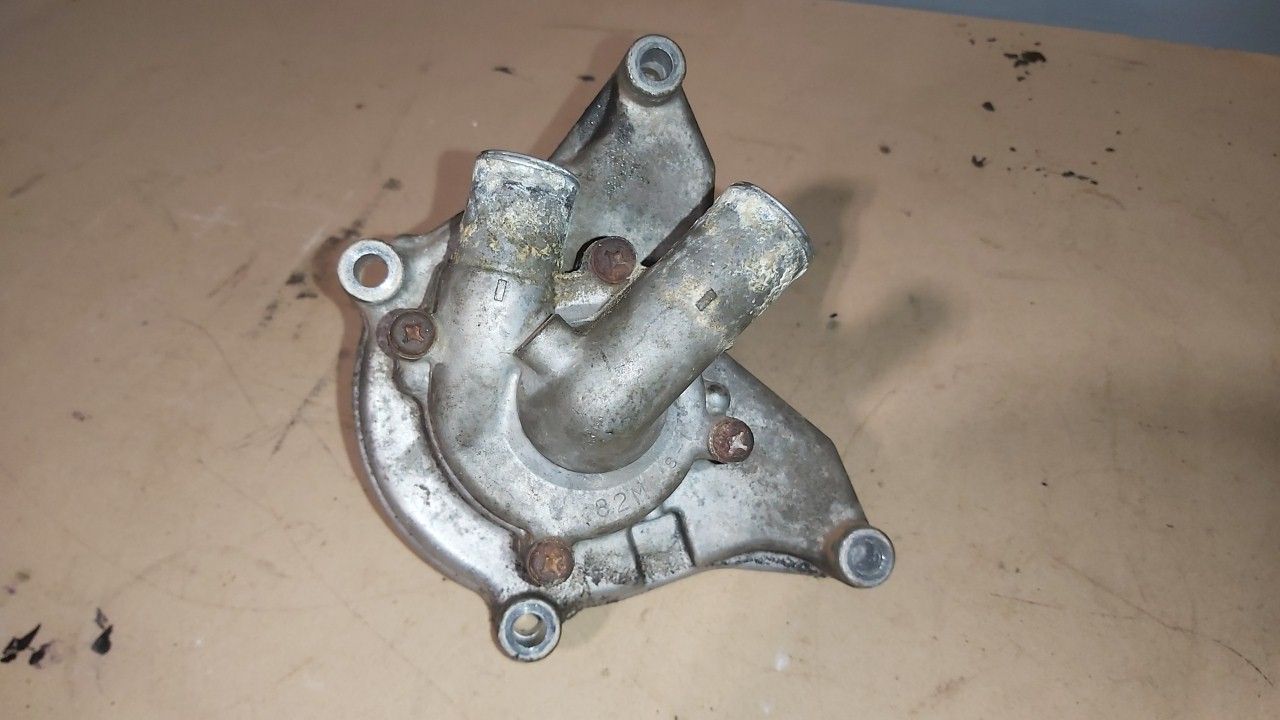

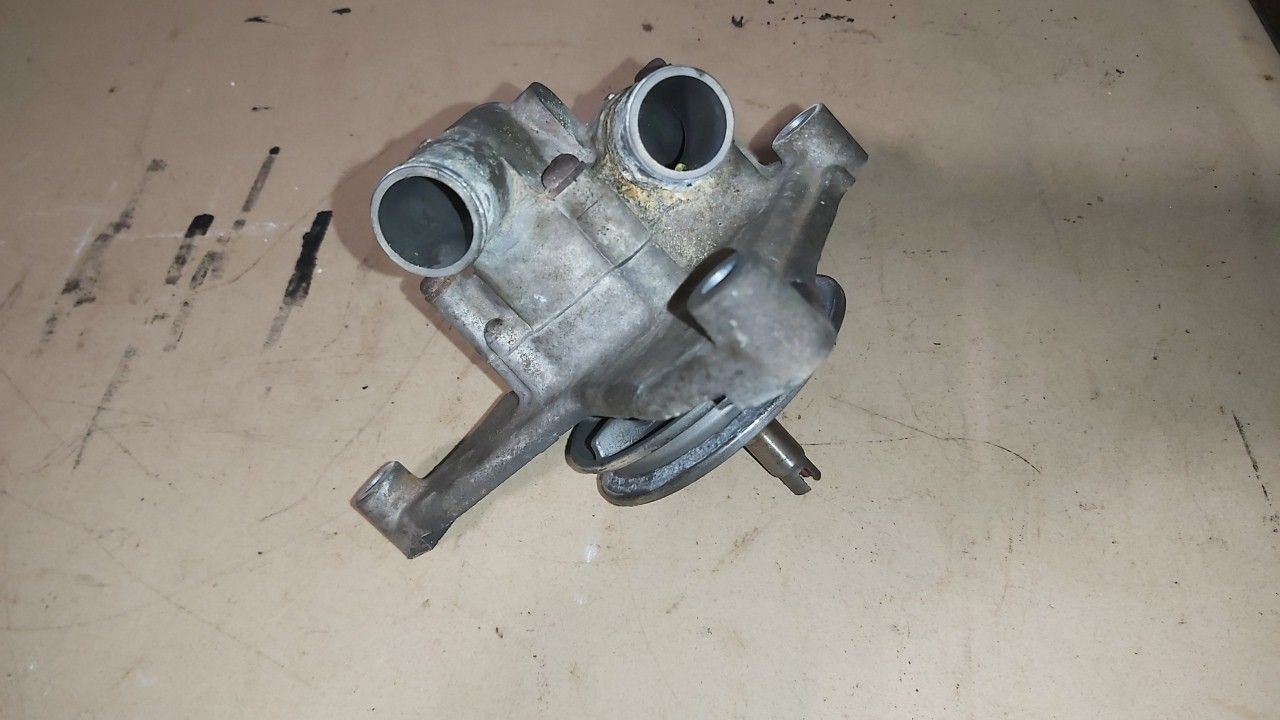

1994 – 1996 Yamaha Vmax 500/600 Water Pump With Housing

Cover, Housing
8AB-12422-00-00, 8AB-12422-01-00

ASSEMBLIES WHERE 8AB-12422-00-00 IS USED
1994 VMAX 500 (VX500U) – Water Pump
1994 VMAX 500 DX (VX500DXU) – Water Pump
1994 VMAX 500 LE (ELEC START) (VX500EU) – Water Pump
1994 VMAX 500 ST (LONG TRACK) (VX500STU) – Water Pump
1994 VMAX 600 (VX600U) – Water Pump
1994 VMAX 600 DX (VX600DXU) – Water Pump
1994 VMAX 600 LE (ELEC START) (VX600EU) – Water Pump
1994 VMAX 600 ST (VX600STU) – Water Pump
1995 VMAX 500 (VX500V) – Water Pump
1995 VMAX 500 DX (VX500DXV) – Water Pump
1995 VMAX 500 LE (ELEC START) (VX500EV) – Water Pump
1995 VMAX 600 (VX600V) – Water Pump
1995 VMAX 600 DX (VX600DXV) – Water Pump
1995 VMAX 600 LE (ELEC START) (VX600EV) – Water Pump
1995 VMAX 600 ST (LONG TRACK) (VX600STV) – Water Pump
1996 VMAX 500 (VX500W) – Water Pump
1996 VMAX 500 DX (VX500DXW) – Water Pump
1996 VMAX 500 LE (ELEC START) (VX500EW) – Water Pump
1996 VMAX 500 XT PROACTION PLUS (VX500XTW) – Water Pump
1996 VMAX 600 (VX600W) – Water Pump
1996 VMAX 600 DX (VX600DXW) – Water Pump
1996 VMAX 600 LE (ELEC START) (VX600EW) – Water Pump
1996 VMAX 600 MOUNTAIN MAX (VX600STW) – Water Pump
1996 VMAX 600 XT PROACTION PLUS (VX600XTW) – Water Pump

Impeller Shaft Assembly
8AB-12450-00-00 8AB-W1247-02-00

Housing, Water Pump
8AB-W1247-00-00 8AB-W1247-02-00

Housing, Water Pump
8AB-W1247-01-00 8AB-W1247-02-00

Housing, Water Pump
8AB-W1247-02-00

Housing, Water Pump

8AB-W1247-02-00

ASSEMBLIES WHERE 8AB-W1247-02-00 IS USED
1996 VMAX 500 DX (VX500DXW) – Water Pump
1996 VMAX 500 XT PROACTION PLUS (VX500XTW) – Water Pump
1996 VMAX 600 DX (VX600DXW) – Water Pump
1996 VMAX 600 MOUNTAIN MAX (VX600STW) – Water Pump
1996 VMAX 600 XT PROACTION PLUS (VX600XTW) – Water Pump
