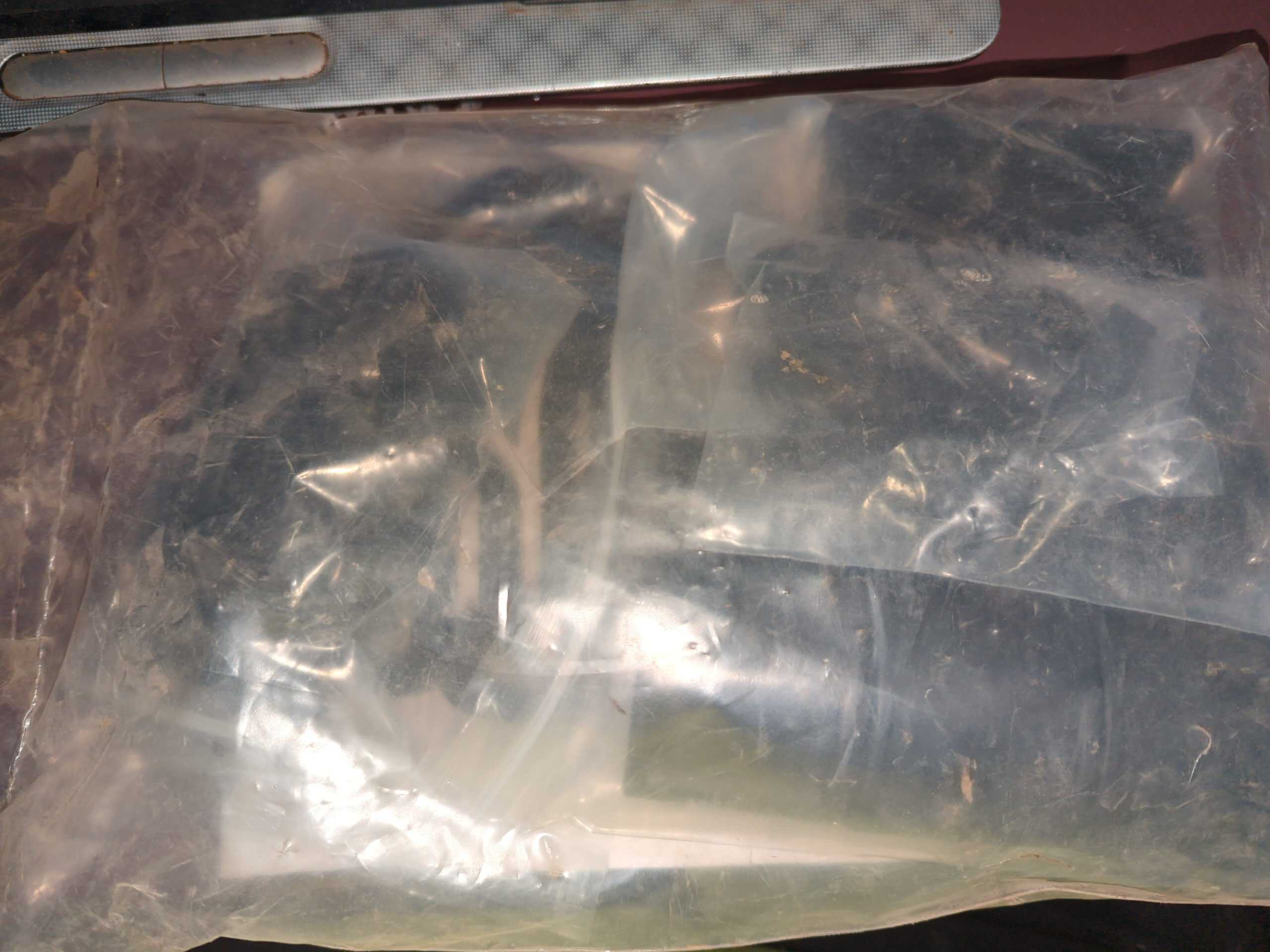

2013 – 2014 Polaris Ranger 400,500,570,800 Windshield Mounting Kit

DIRECTION 2

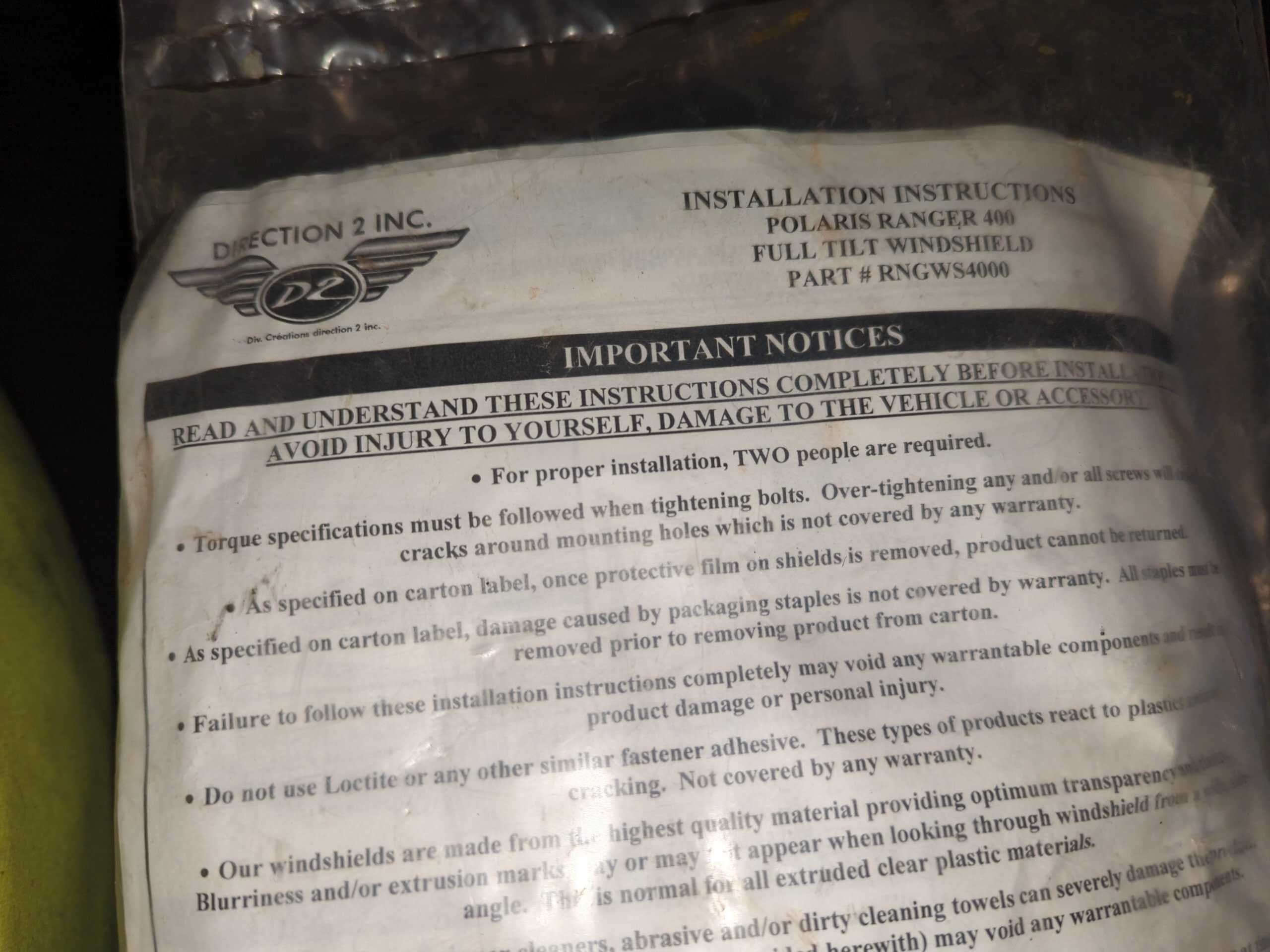

Front Full Tilt Windshield Mounting Kit For – RNGWS4000

(1) 42″ x 1″ x 1/2″ Self adhesive foam cushion

(2) Clamp set (3 Male/3 Female clamp parts)

(1) Clamp set (2 Male/2 Female clamp parts)

(8) 6mm-1.00 x 20mm Socket cap bolts

(18) 6mm-1.00 x 18mm Button head bolts

(4) 6mm-1.00 x 45mm Button head bolts

(2) 6mm x 35mm “T” knobs

(10) 6mm Nylock nuts

(16) 6mm Internal lock washers

(16) 6mm Domed shoulder washers

(2) Top pivot hinge of upper windshield (2 upper pivots and 4 upper pivot cylinder adaptors

(1) Slide arms and lower pivot of upper windshield (2 slide arms 3 positions and 2 lower pivot mounts).

Polaris
Ranger 400 • 2010-2014
Ranger 500 EFI Mid-Size LE Magnetic Metallic • 2013
Ranger 500 EFI Mid-Size Pursuit Camo • 2013
Ranger 500 EFI Mid-Size Crew LE Sandstone Metallic • 2013
Ranger 500 EFI Mid-Size Crew Pursuit Camo • 2013
Ranger 500 EFI Mid-Size Crew Sage Green • 2013
Ranger 500 EFI Mid-Size Crew Solar Red • 2013
Ranger 500 EFI Mid-Size Sage Green • 2013
Ranger 500 EFI Mid-Size Solar Red • 2013
Ranger 570 Mid-Size Crew LE EPS Burgundy • 2014
Ranger 570 Mid-Size Crew Pursuit Camo • 2014
Ranger 570 Mid-Size Crew Sage Green • 2014
Ranger 570 Mid-Size Crew Solar Red • 2014
Ranger 570 Mid-Size LE EPS Gold Mist • 2014
Ranger 570 Mid-Size Pursuit Camo 2014
Ranger 570 Mid-Size Sage Green 2014
Ranger 570 Mid-Size Solar Red 2014
Ranger 800 Crew EPS Pursuit Camo 2013
Ranger 800 Crew LE EPS Blue Fire 2013
Ranger 800 Crew Solar Red 2013
Ranger 800 Mid-Size EPS Gold Mist 2014
Ranger 800 Mid-Size LE Nuclear Sunset Orange 2013
Ranger 800 Mid-Size Pursuit Camo 2013-2014
Ranger 800 Mid-Size Sage Green 2013-2014
Ranger EV 2010-2012
Ranger EV Avalanche Gray 2014
Ranger EV Boardwalk Blue 2013
Ranger EV Pursuit Camo 2013-2014
