2012-2014 Arctic Cat ZR F XF M 1100 One Piece Clutch Guard Kit

Part Number: 0637-478 – bIT,CLUTCH GUARD-4 STRK
Replaces 0637-435

Part Number: 0637-435 – R/B 0637-478
Replaced by 0637-478

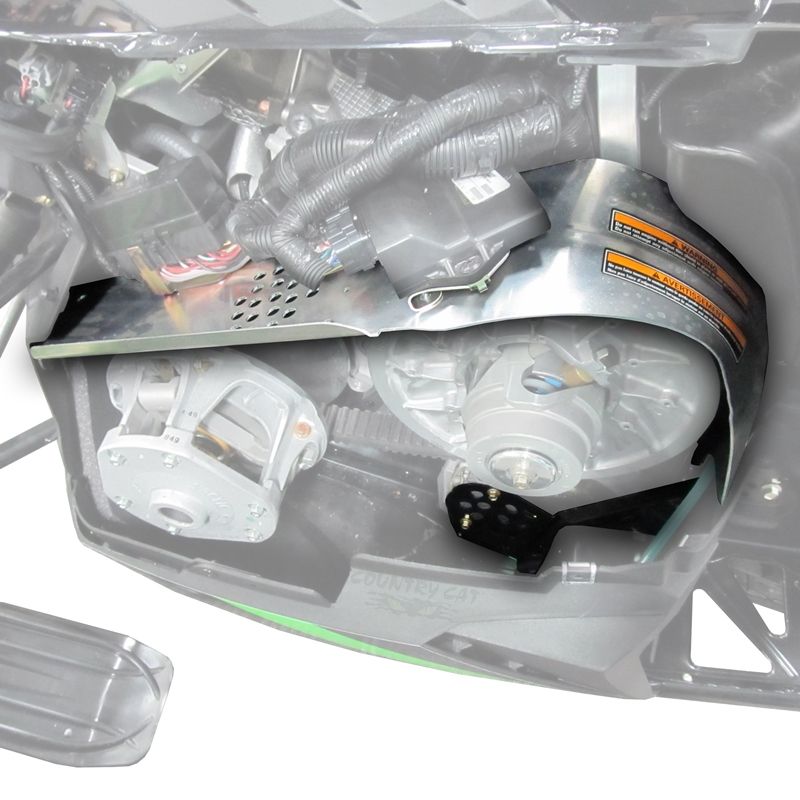

Arctic Cat One Piece Clutch Guard Kit – 2012-2014 ZR F XF M 1100

Upgrades 2012-2014 models to the 2015 style one-piece clutch guard
Includes clutch guard, brake disc shield, mounting hardware, templates, and instructions

Kit Includes:

2707-044 1 Brake Disc Shield
0623-797 4 Self-Tapping Screw
1623-052 4 U-Nut (Green)
1623-637 1 U-Nut (Black)
2707-276 1 Clutch Guard (4-Stroke)
0608-711 1 ECM Mounting Bracket
8060-682 5 Mounting Bracket Rivet
8060-686 2 Rivet (Small)
8061-708 2 Rivet (Large)
8408-525 1 Cap Screw (M5 x 25)
8408-613 2 Cap Screw (M6 x 12)
8427-502 2 Nyloc Nut
8470-520 1 Machine Screw
N/A 1 Template (1100 cc Turbo)
1653-903 1 Instructions

Replaces Part # 0637-435

Fits Models:

2012-2013 F 1100 & 1100 Turbo
2012-2013 XF 1100 & 1100 Turbo
2012-2013 M 1100 & 1100 Turbo
2014 ZR 5000 & 9000
2014 XF 9000
2014 M 9000
