2008-2019 Suzuki GSX1300 / B-King / Hayabusa ,500W Stator 32101-24F20 / 32101-24F22 / 32101-24F30

RM01597

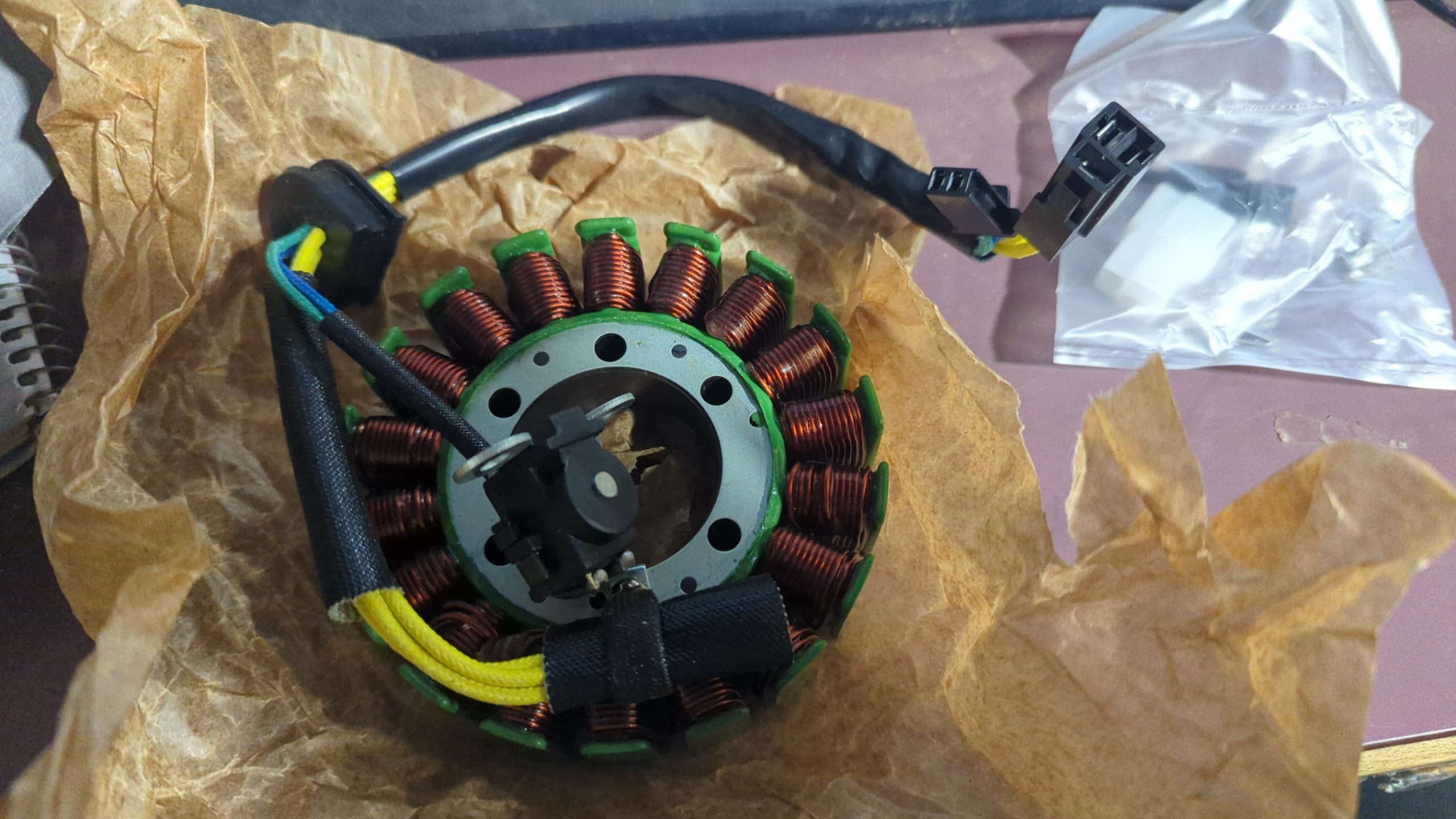

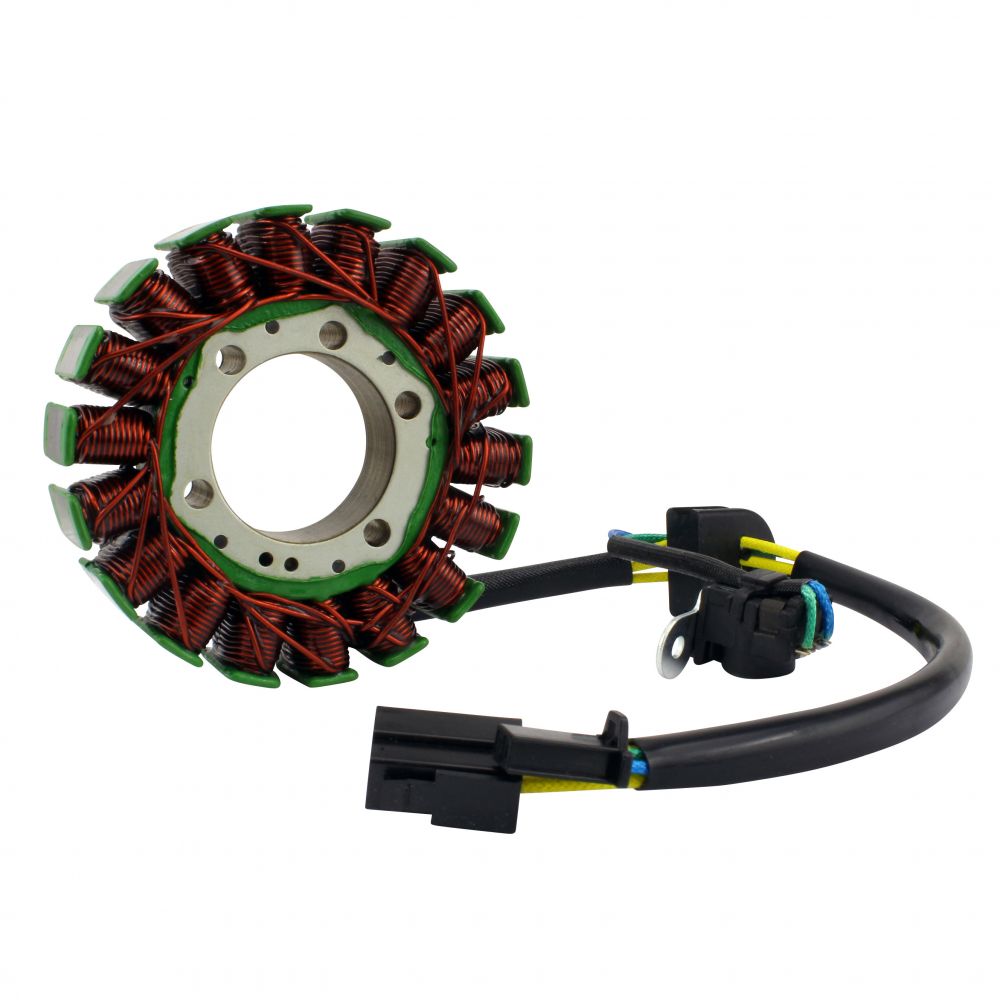

500W Stator for Suzuki GSX1300 / B-King / Hayabusa 2008-2019 | 32101-24F20 / 32101-24F22 / 32101-24F30

Vehicle Fitment
2024 Suzuki Hayabusa GSX 1300 R
2023 Suzuki Hayabusa GSX 1300 R
2022 Suzuki Hayabusa GSX 1300 R
2019 Suzuki Hayabusa GSX 1300 R
2017 Suzuki Hayabusa GSX 1300 R
2016 Suzuki Hayabusa GSX 1300 R
2015 Suzuki Hayabusa GSX 1300 R
2014 Suzuki Hayabusa GSX 1300 R
2013 Suzuki Hayabusa GSX 1300 R
2012 Suzuki Hayabusa GSX 1300 R
2011 Suzuki Hayabusa GSX 1300 R
2009 Suzuki Hayabusa GSX 1300 R
2008 Suzuki Hayabusa GSX 1300 R
2008 Suzuki GSX 1300 B-King
Interchange Part No
32101-24F20
32101-24F30
32101-24F21
32101-24F22
Specifications
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 108 mm
Thickness : 22 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 200 mm
Length of pickup coil’s wire to grommet : 55 mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : White to White = 0.5 ohms +-20%
Pickup : Blue to Green = 239 ohms +-20%

Installation
Before installing your new Stator

Check the AC output of the stator
Replace any burned or corroded connectors on stator and regulator rectifier
Check and repair any melted wiring
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010″.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
