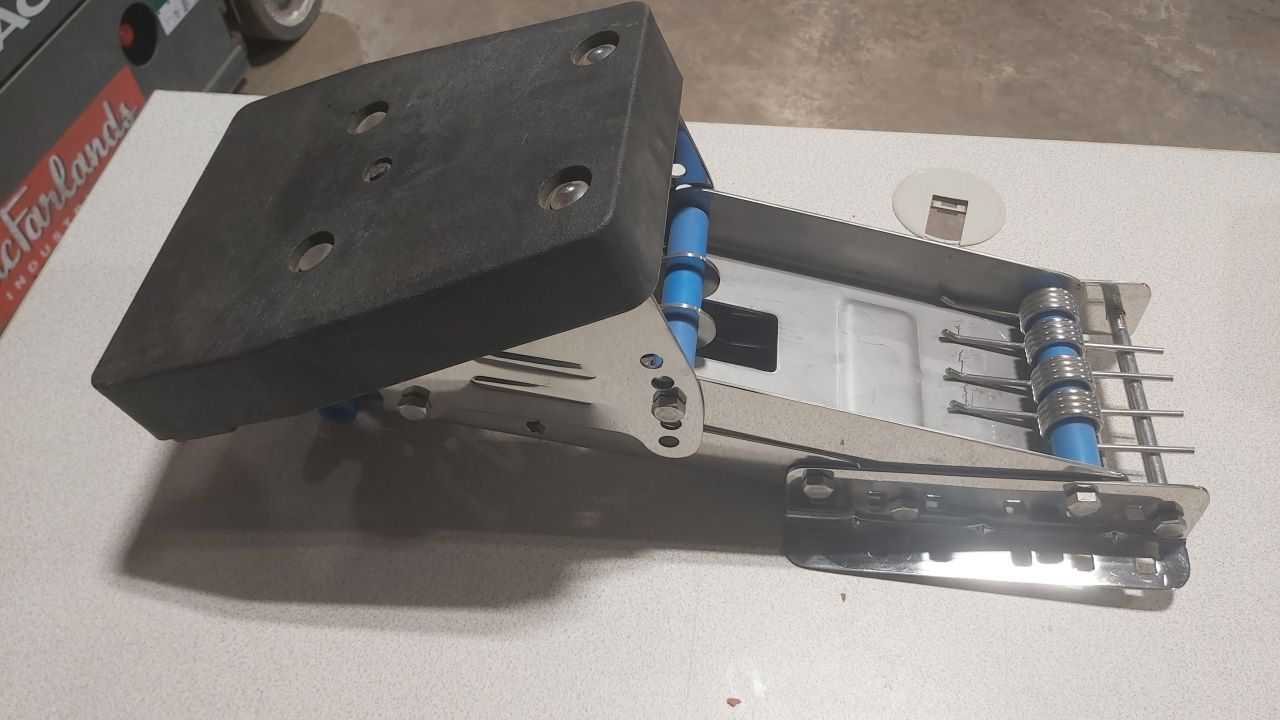

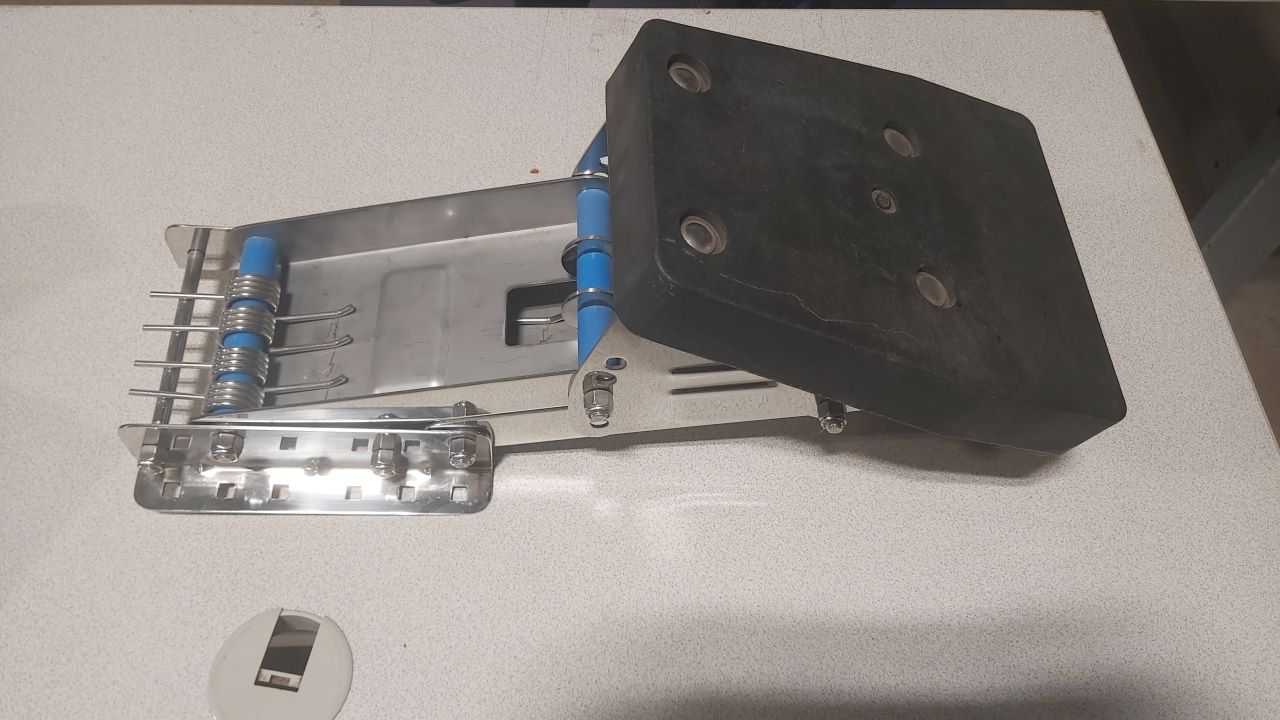

Amarine Made Stainless Steel Outboard Auxiliary Motor Bracket- 20hp

https://amarine.store/products/amarine-made-stainless-steel-outboard-auxiliary-motor-bracket-20hp

CODE: 700621158288

VENDOR: Amarine Made

Product Charactors:

Stainless steel, spring loaded 4 vertical position) adjustable bracket
Solid polypropylene mounting board, Wide track body for added stability
Easy to lift and lower – Stainless springs help counterbalance motor weight
Heavy duty with reinforced welded frame and stamped stainless components
Suits 2-stroke motors 7 1/2 – 20 HP, with a maximum weight of 52kg (115lbs)

Specifications:

For 2-stroke motors 7 1/2 – 20 HP
Material: Stainless steel construction, solid polypropylene mounting board Board area: 270 x 210mm (10 1/2″ x 8 1/4″)
Mount area on boat: 205 x 220mm (8″ x 8 5/8″)
Mount holes: 8mm
Lift range: 285mm/11.25″
Mounting holes have a horizontal distance of 170mm across (centre to centre), and multiple vertical distances of 100mm, 130mm, or 160mm(centre to centre)
